Best Price - 2018 Hantek Digital Oscilloscope PSO2020 Diagnostic-tool Portable Pen type Storage Handheld Oscilocopio USB PC 1 Channel 20Mhz Excellent
Get The Best Price For - 2018 Hantek Digital Oscilloscope PSO2020 Diagnostic-tool Portable Pen type Storage Handheld Oscilocopio USB PC 1 Channel 20Mhz Best Price
Model Number:
PSO2020
Max Waveform Capture Rate:
30,000wfm/s
Digital Channels:
1
Record Length:
as describe
IS Battery Demountable:
No
Display Size:
None
Brand Name:
maxgboom
DIY Supplies:
Electrical
Band Width:
20MHz
Real Time Sampling Rate:
96MSa/s
Display resolution:
None

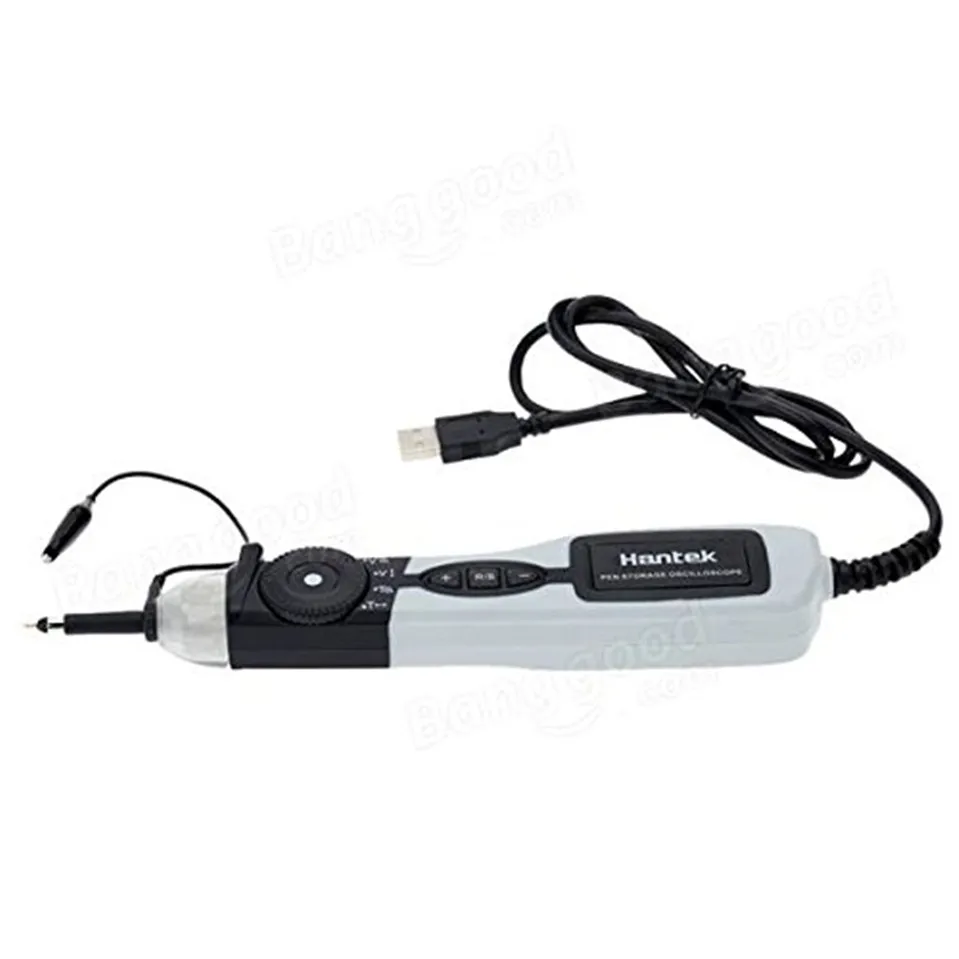

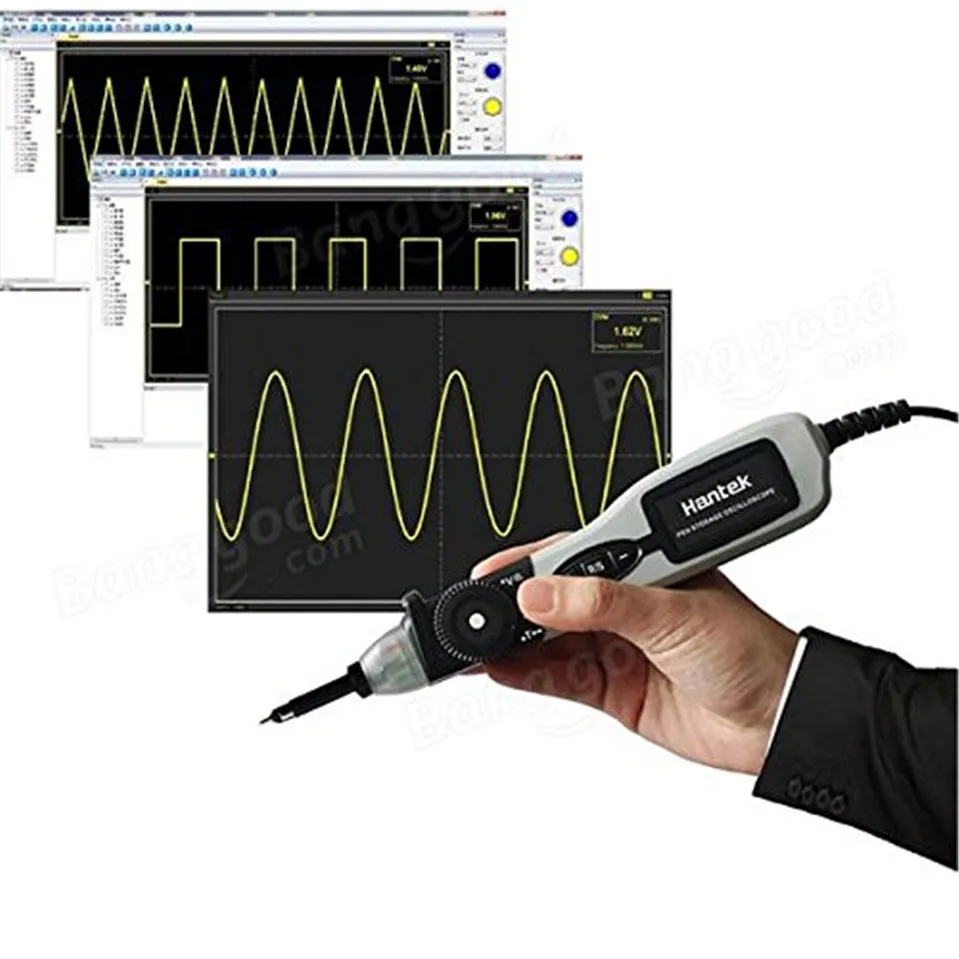

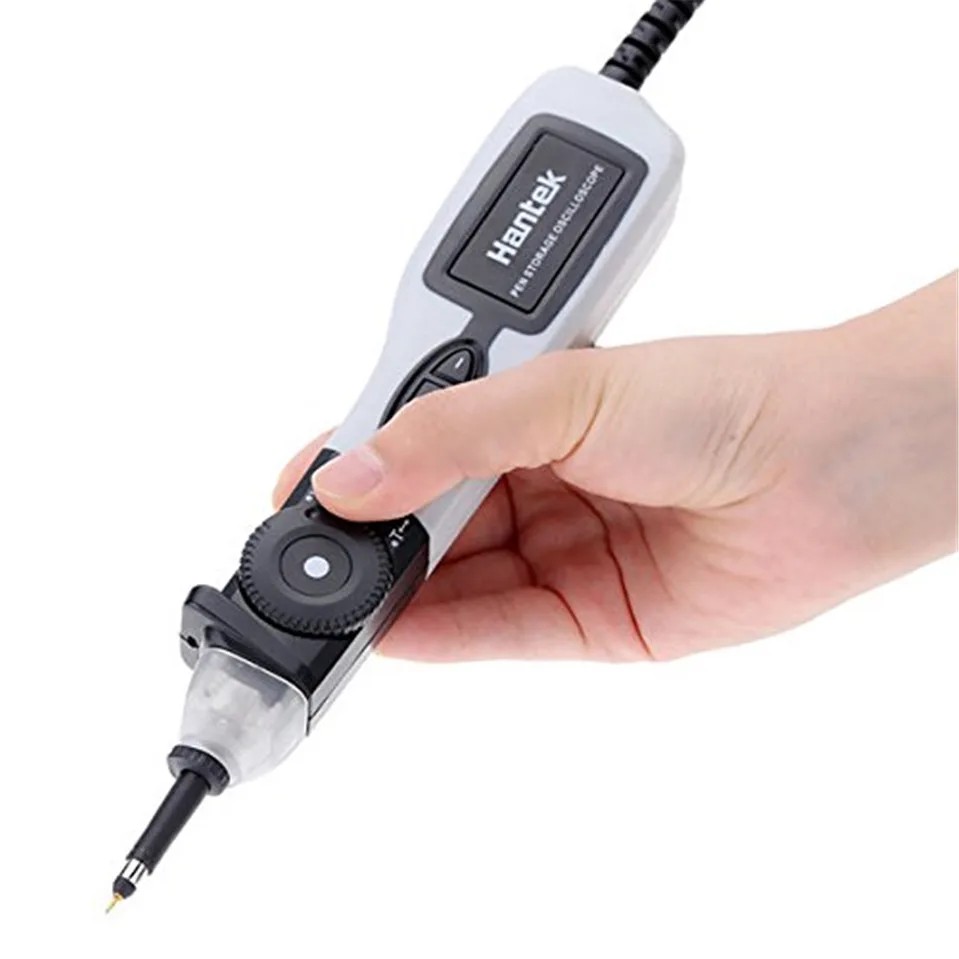

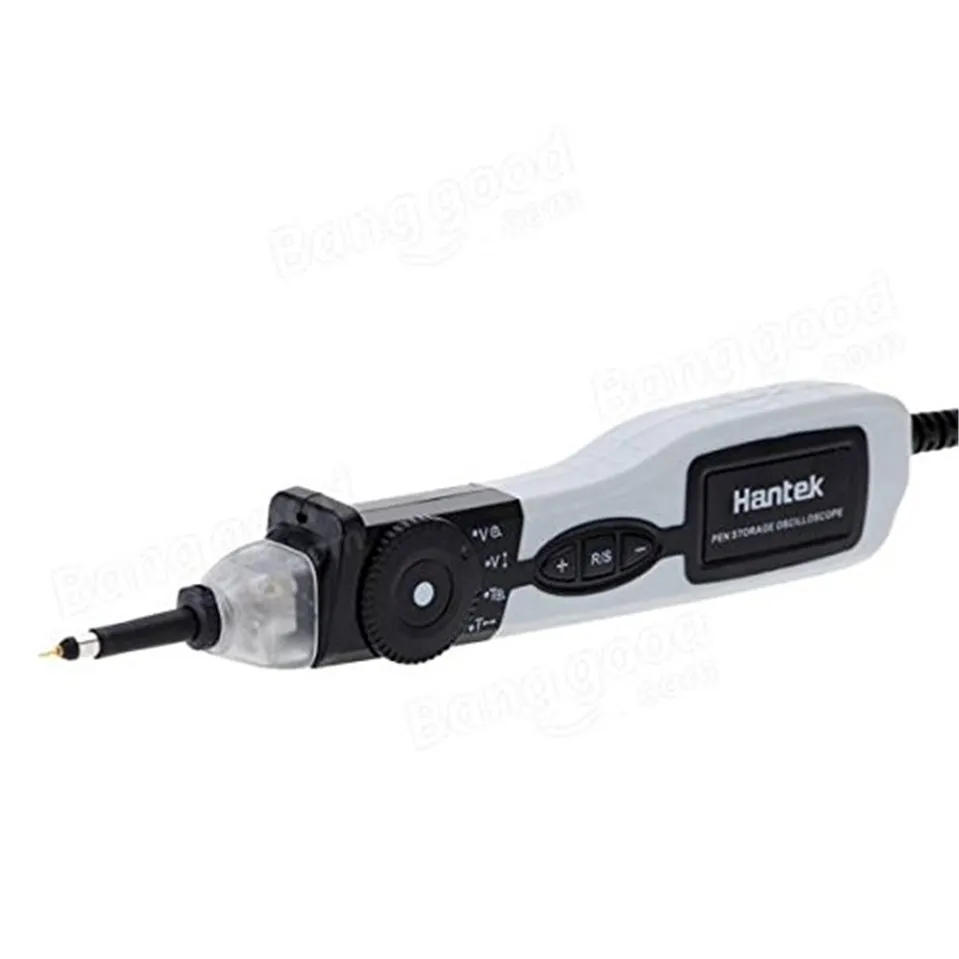

Hantek Digital Oscilloscope PSO2020 Portable Pen type Storage Handheld Oscilocopio USB 1 Channel 20Mhz 96MSa/s Diagnostic-tool
Features:
*Powered by USB interface, plug and play device; with automatically measurement function, easy for operation.
*Change the voltage/time division gear with single hand, no need to operate on the computer.
*Built-in LED light, providing better light for user's convenient operation in dark environment.
*Light weight and portable in design, suitable for use.
*DVM(digital voltmeter)function, real-time display the voltage measurement results.
*20MHz bandwidth, meet the requirements of measurement
*Different kinds of language available, 20 types of auto measurement functions, pass/fail function.
*Operating system:Windows NT,Windows2000/XP, WIN7/8.
*Possible to connect to laptop directly, high cost performance.
Specifications:
Vertical
Channel: 1
Bandwidth: 20MHz
Input Impedence: 1MΩ
Input Sensitivity: 20mV/div to 50V/div
Input Coupling: DC/AC/GND
Vertical Accuracy: ±3%
Resolution: 8 bits
Memory Depth:Maximum 1M/CH
Max. Measurement Voltage: ±50V (Without any attenuation)
Input Protection: 100V (DC+AC Peak)
Horizontal
Max. Sample Rate: 96MSa/s
Time Base Range: 1ns/div to 5000s/div (Step by 1-2-5)
Trigger
Trigger Source: CH1
Trigger Type: Edge Trigger
Cursor and Measurement
Voltage Measurement: Vmax, Vmin, Vpp, Vamp, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot,
Time Measurement: Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Cursors Measurement: Cross, Trace, Horizontal, Vertical
Math: +,- , x,÷, FFT
Voltage Range: 20mV to 20V/div @ x 1 probe
Others
FFT: Rectangular, Hanning, Hamming, Blackman
Auto Set: Yes
Interface: USB 2.0
Power Supply: USB Power Supply
Dimensions: 230 * 40 * 20mm / 9.05 * 1.57 * 0.8in
Weight: 135g / 4.76oz
Package Size: 30 * 12 * 3.5cm / 11.8 * 4.72 * 1.4in (L * W * H)
Package Weight: 263g / 9.29oz
Package List:
1 * PSO 2020 Pen Oscilloscope
1 * CD
Unit Type:
piece
Package Weight:
0.35kg (0.77lb.)
Package Size:
20cm x 15cm x 10cm (7.87in x 5.91in x 3.94in)
