Brand Name:
Hantek
DIY Supplies:
Electrical
Digital Channels:
1
Display Size:
None
Model Number:
PSO2020
Record Length:
Maximum 1M/CH
Band Width:
20MHz
Display resolution:
None
Real Time Sampling Rate:
96MSa/s
Item:
USB Pen Storage Oscilloscope
Input Impedence:
1MΩ
Vertical Accuracy:
±3%
Resolution:
8 bits
Memory Depth:
Maximum 1M/CH
Interface:
USB 2.0
Input Protection:
100V (DC+AC Peak)
Max. Measurement Voltage:
±50V (Without any attenuation)
 | ||
 |  |  |
 |  |  |

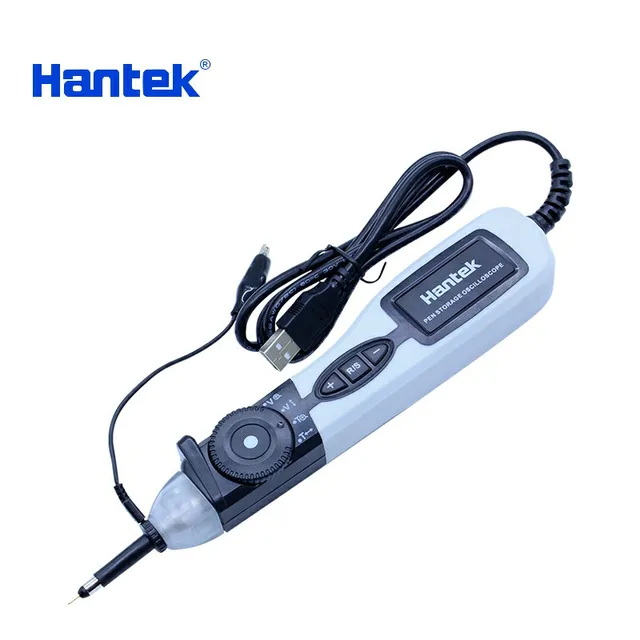

Hantek PSO2020 Pen type Storage Digital Oscilloscope with PC USB 1Channel 96MSa/s 20MHz Bandwidth
Features
1.Powered by USB Interface. Plug and Play Device. Automatically Measurement Function. Easy for Operation;
2.Change the Voltage/Time Division Gear with Single Hand. No Need to Operate on the Computer;
3.Built-in LED Light, Providing Better Light for User's Convenient Operation in Dark Environment;
4.Light Weight and Portable. Suitable for Human Body's Design;
5.DVM Function, Real-time Display the Voltage Measurement Results;
6.20MHz Bandwidth. Meet the Requirements of Measurement;

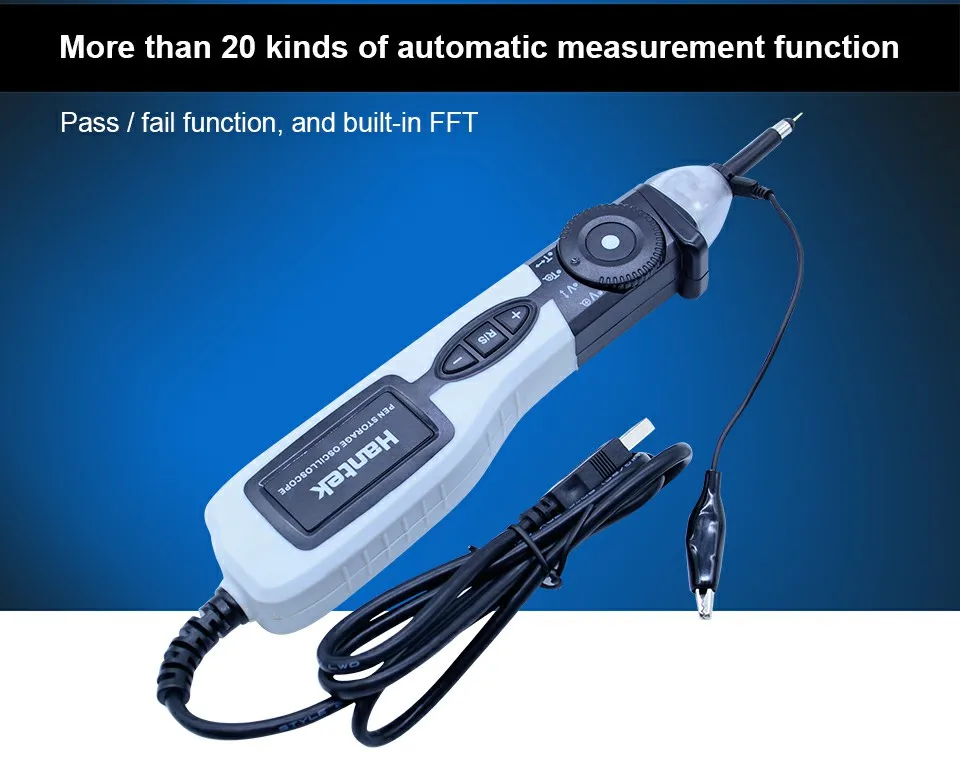

7.Different Kinds of Language Available. 20 Types of Auto Measurement Function, Pass/Fail Function;

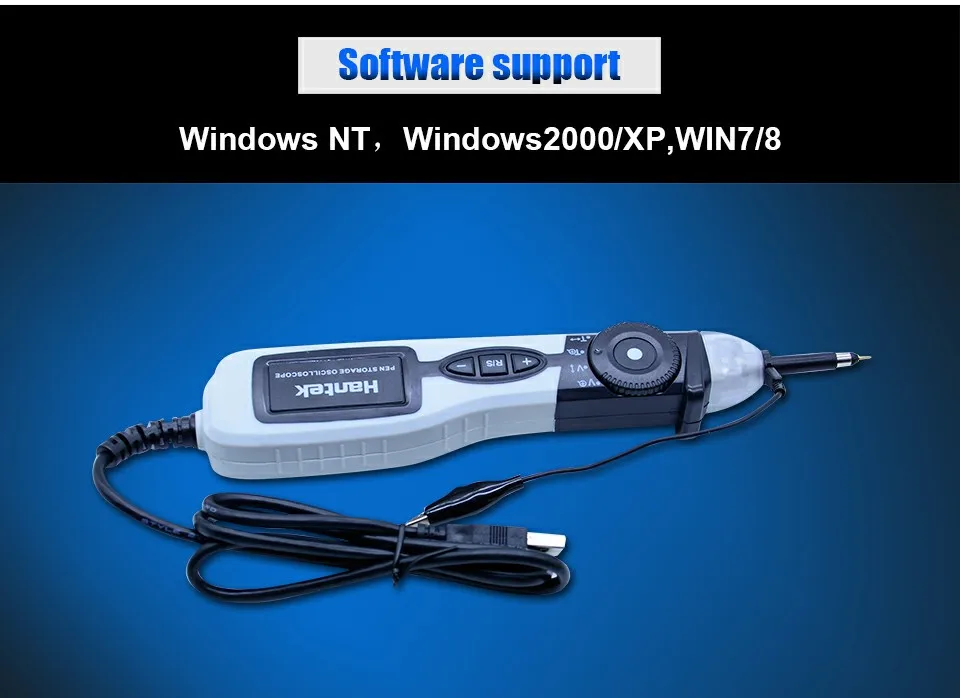

8.Operating System:Windows NT,Windows2000/XP,WIN7/8;
9.Possible to Connect to Laptop Directly. High Cost Performance.

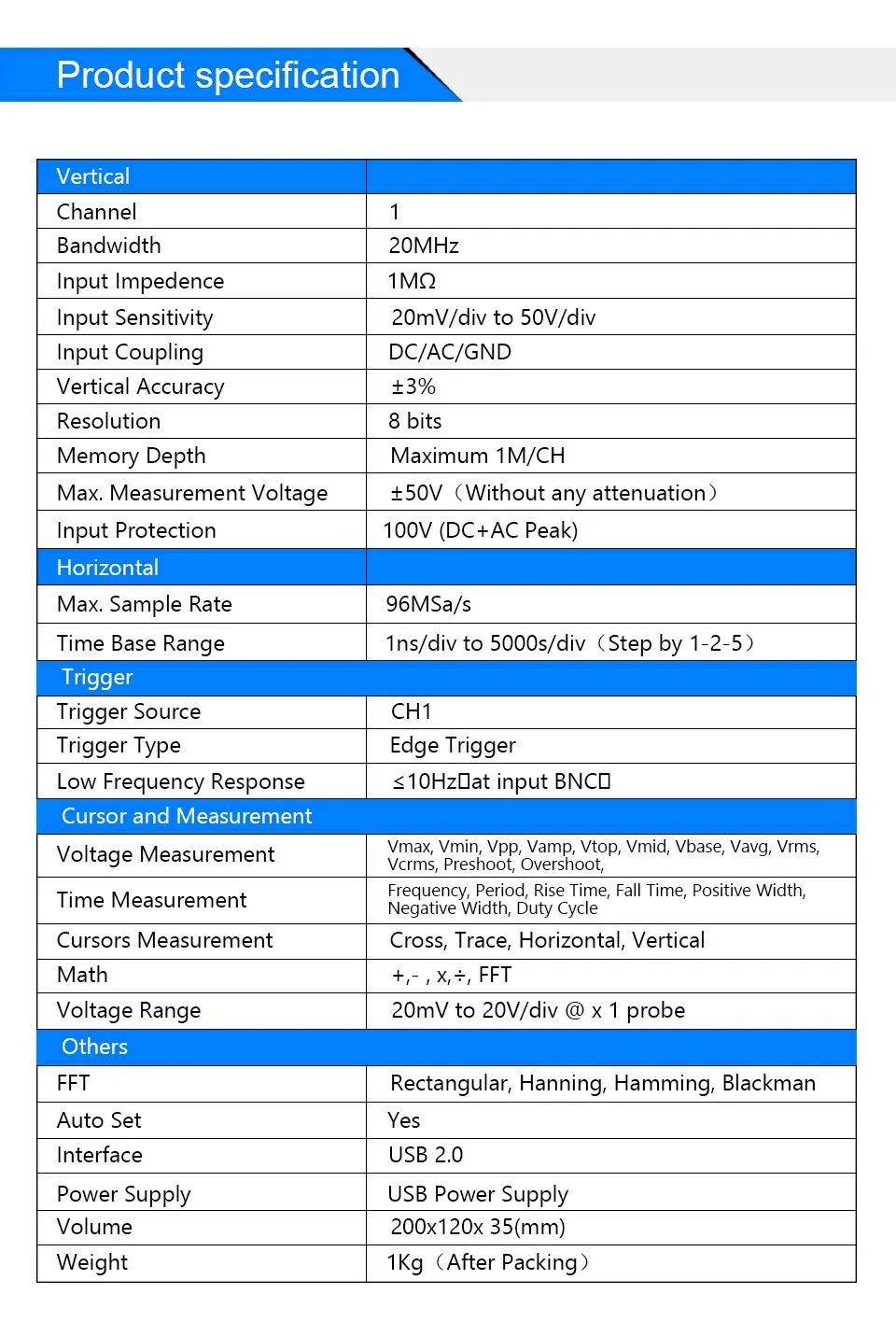

Specifications
| Vertical | |
| Channel | 1 |
| Bandwidth | 20MHz |
| Input Impedence | 1MΩ |
| Input Sensitivity | 20mV/div to 50V/div |
| Input Coupling | DC/AC/GND |
| Vertical Accuracy | ±3% |
| Resolution | 8 bits |
| Memory Depth | Maximum 1M/CH |
| Max. Measurement Voltage | ±50V(Without any attenuation) |
| Input Protection | 100V (DC+AC Peak) |
| Horizontal | |
| Max. Sample Rate | 96MSa/s |
| Time Base Range | 1ns/div to 5000s/div(Step by 1-2-5) |
| Trigger | |
| Trigger Source | CH1 |
| Trigger Type | Edge Trigger |
| Cursor and Measurement | |
| Voltage Measurement | Vmax, Vmin, Vpp, Vamp, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, |
| Time Measurement | Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle |
| Cursors Measurement | Cross, Trace, Horizontal, Vertical |
| Math | +,- , x,÷, FFT |
| Voltage Range | 20mV to 20V/div @ x 1 probe |
| Others | |
| FFT | Rectangular, Hanning, Hamming, Blackman |
| Auto Set | Yes |
| Interface | USB 2.0 |
| Power Supply | USB Power Supply |
| Volume | 200x120x 35(mm) |
| Weight | 1Kg(After Packing) |

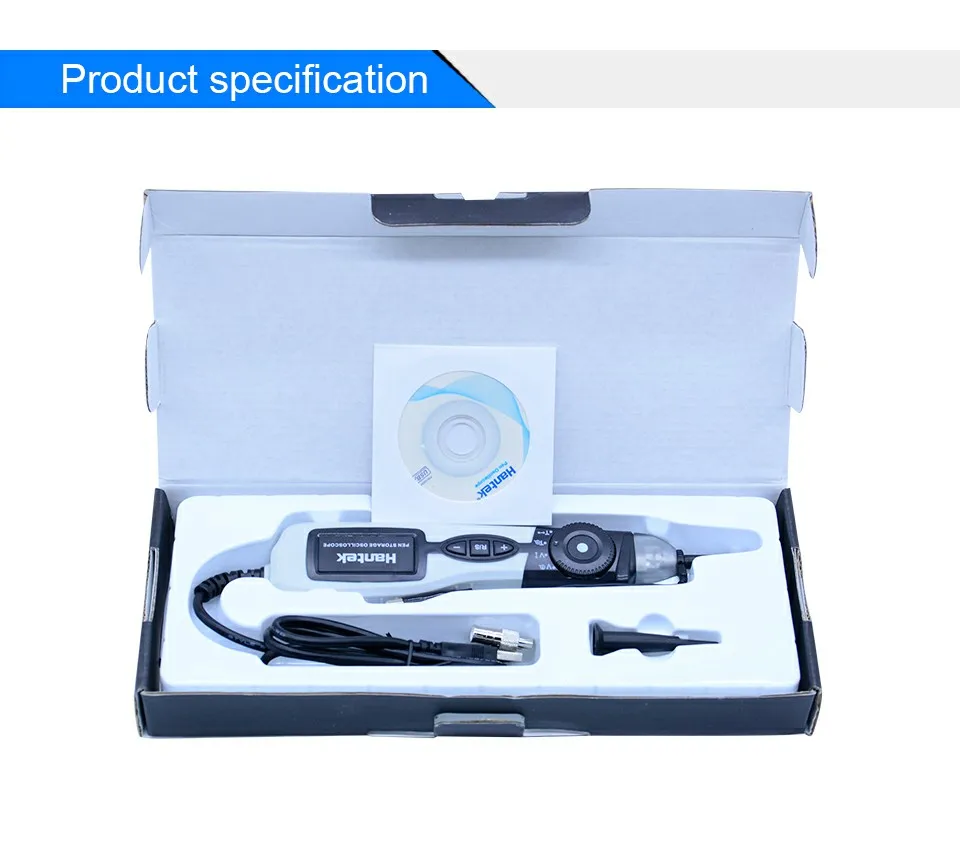

Package List
1*Pen oscilloscope PSO2020
1*Signal source input connector
1*Probe cap
1*CD
1*Color box
| | |
Unit Type:
piece
Package Weight:
0.38kg (0.84lb.)
Package Size:
15cm x 15cm x 10cm (5.91in x 5.91in x 3.94in)
