Special Price - O067 HANTEK PSO2020 Bandwidth 20MHz Sample Rate 96MSa/s Mini Portable Handheld Digital USB Pen Type Storage Oscilloscope Very Recommended
Buy Online - O067 HANTEK PSO2020 Bandwidth 20MHz Sample Rate 96MSa/s Mini Portable Handheld Digital USB Pen Type Storage Oscilloscope Special Price
Model Number:
PSO2020
Record Length:
n/a
Brand Name:
Hantek
DIY Supplies:
Electrical
Band Width:
Less than 60MHz
Digital Channels:
2
Display Size:
None
Real Time Sampling Rate:
96MSa/s
Display resolution:
n/a

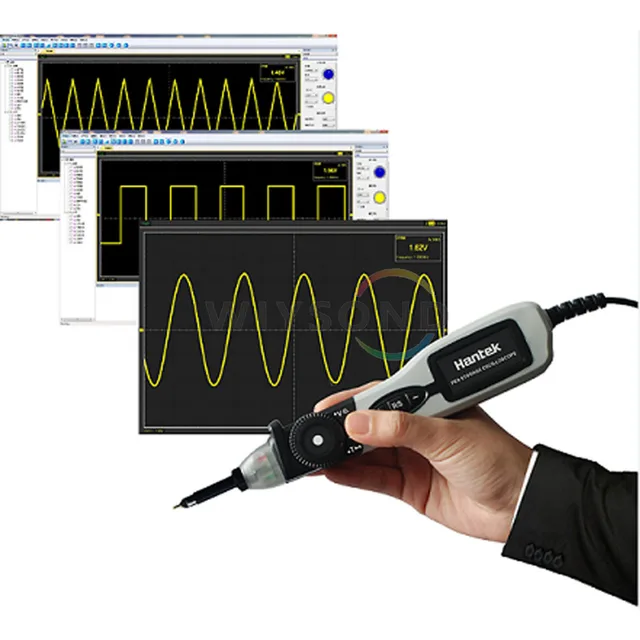

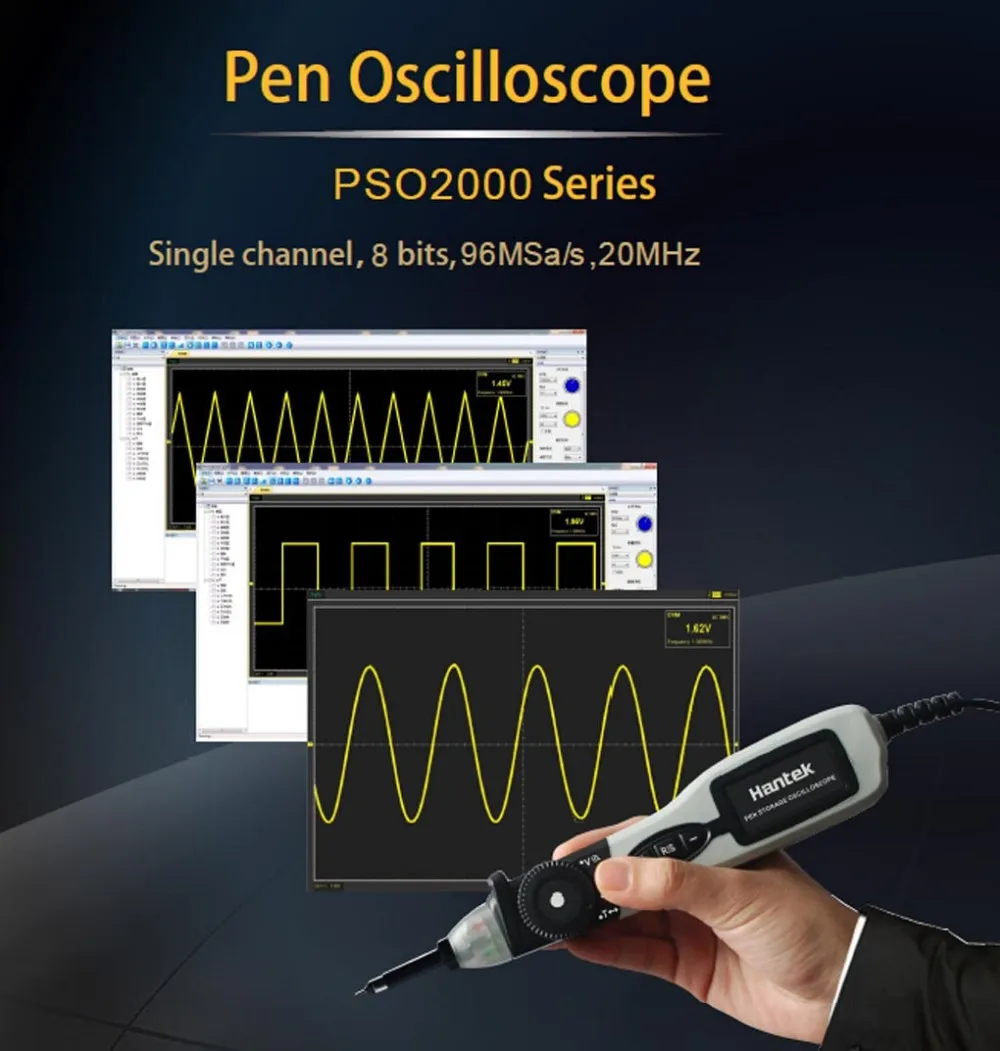

Bandwidth 20MHz Sample Rate 96MSa/s Mini Portable Handheld Digital USB Pen Type Storage Oscilloscope
Features:
- Powered by USB Interface. Plug and Play Device. Automatically Measurement Function. Easy for Operation;
- Change the Voltage/Time Division Gear with Single Hand. No Need to Operate on the Computer;
- Built-in LED Light, Providing Better Light for User's Convenient Operation in Dark Environment;
- Light Weight and Portable. Suitable for Human Body's Design;
- DVM Function, Real-time Display the Voltage Measurement Results;
- 20MHz Bandwidth. Meet the Requirements of Measurement;
- Different Kinds of Language Available. 20 Types of Auto Measurement Function, Pass/Fail Function;
- Operating System: Windows NT, Windows2000/XP,WIN7/8;
- Possible to Connect to Laptop Directly. High Cost Performance.
Characteristic:
| Vertical | |
| Channel | 1 |
| Bandwidth | 20MHz |
| Input Impedence | 1MΩ |
| Input Sensitivity | 20mV/div to 50V/div |
| Input Coupling | DC/AC/GND |
| Vertical Accuracy | ±3% |
| Resolution | 8 bits |
| Memory Depth | Maximum 1M/CH |
| Max. Measurement Voltage | ±50V (Without any attenuation) |
| Input Protection | 100V (DC+AC Peak) |
| Horizontal | |
| Max. Sample Rate | 96MSa/s |
| Time Base Range | 1ns/div to 5000s/div (Step by 1-2-5) |
| Trigger | |
| Trigger Source | CH1 |
| Trigger Type | Edge Trigger |
| Cursor and Measurement | |
| Voltage Measurement | Vmax, Vmin, Vpp, Vamp, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, |
| Time Measurement | Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle |
| Cursors Measurement | Cross, Trace, Horizontal, Vertical |
| Math | +,- , x,÷, FFT |
| Voltage Range | 20mV to 5V/div @ x 1 probe |
| Others | |
| FFT | Rectangular, Hanning, Hamming, Blackman |
| Auto Set | Yes |
| Interface | USB 2.0 |
| Power Supply | USB Power Supply |
| Volume | 200x120x 35(mm) |
| Weight | 1Kg (After Packing) |
Package:
1 x PSO 2020 pen oscilloscope
1 x CD (manual etc.)
1 x Gift Box
Unit Type:
piece
Package Weight:
1.0kg (2.20lb.)
Package Size:
35cm x 30cm x 6cm (13.78in x 11.81in x 2.36in)
