Special Price - AN8000 AN8001 AN8002 AN8004 Portable LCD Digital Multimeter AC/DC Ammeter Voltmeter Ohm Meter Wire Pen Auto Digital Multimeter Wonderfull
Under (Add Your Price Ranges) - AN8000 AN8001 AN8002 AN8004 Portable LCD Digital Multimeter AC/DC Ammeter Voltmeter Ohm Meter Wire Pen Auto Digital Multimeter Special Price
Brand Name:
Xueliee
DIY Supplies:
Electrical
Display Type:
Digital Display
Measuring Inductance Range:
---
Operating Temperature:
0 - 50 ℃
Dimensions:
65x130x32 mm
Model Number:
AN8000-AN8009
Measuring Resistance Range:
0.1-40M
Measuring Capacitance Range:
0.004nF-200.0uF
Operating Mode:
---
AC Voltage:
---
DC Voltage:
---
AC Current:
---
DC Current:
0.1uA to 10A
Duty cycle:
1% to 99%
Frequency:
1Hz to 10MHz
Data hold:
yes
Large LCD display:
4000 counts
Battery type:
AAA x2 Pcs 1.5V
Measuring Voltage Range:
600mV/6V/60V/600V/1000V
Measuring Current Range:
0.1uA to 10A

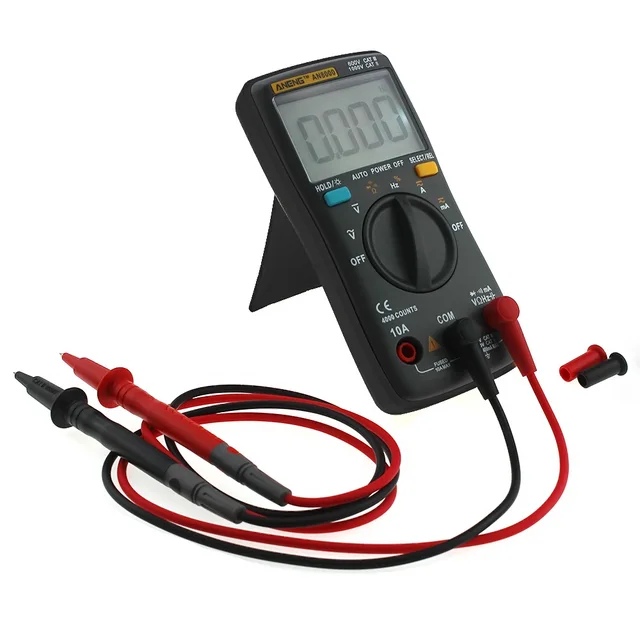

AN8000 PORTABLE AUTORANGING DIGITAL MULTIMETER
Features:
1. Auto ranges
2. 550V protection in Resistance.Capacitance and Frequency ranges
3.Large LCD display,MAX display 4000 counts
4.Sample rate: 3 times per second
5.backlight
6.Data hold
7.Relative measurement
8.Polarity identification
9.Low voltage indication
10.10A high current and low current measurement
11.Auto power off
12.Main measurements:AC/DC Voltage, AC/DC Current, Resistance,Capacitance,
13. Diode and Continuity Testing,Frequency and duty cycle.
14. Frequency:1Hz to 10MHz
15. Capacitance :10pF to 4000uF
16. AC volts: 0.1mV to 750V
17. DC volts:0.1mV to 1000V
18. AC current:0.1uA to 10A
19. DC current:0.1uA to 10A
20. Resistance :0.1Ω to 40MΩ
21. Duty cycle:1% to 99%
Specifications:
1.Capacitance :4nF(±5.0%+4),40nF(±2.5%+4),400nF/4.000uF/40.00uF/400.0uF/1000uF /4000uF(±3.5%+4)
2.DC volts:400mV/4V/40V(±0.5%+4),400V/600V(±0.8%+4)
3.AC volts: 400mV(±1.5%+4), 4V/40V/400V(±1.2%+4),600V(±1.5%+4)
4.DC current:40mA/400mA(±1.0%+4),10A(±1.5%+4)
5.AC current:40mA/400mA/10A(±2.0%+4 ,50-200Hz)
6.Resistance :400Ω/4K/40K/400K/4M(±0.8%+4),40MΩ(±2.0%+4)
7.Frequency:99.5/999.5/9.999k/99.99k/999.9k/9.999MHz (±0.08%+2)
8.Duty cycle:0.1% to 99.9%(±0.08%+2)
9. Measurement mode: △Σ mode
10.Over range indication: OL
11.Working environment: 0~40°, relative humidity < 80%
12.Supply power: 3V (1.5V AAA batteries * 2 Pcs)
13. Dimension: 130*65*30mm
14. Weight: 130g
AN8001 PORTABLE AUTORANGING DIGITAL MULTIMETER
Features:
Auto ranges
True RMS
550V protection in Resistance.Capacitance and Frequency ranges
Large LCD display,MAX display 6000 counts
Sample rate: 3 times per second
backlight
Data hold
Polarity identification
Low voltage indication
10A high current and low current measurement
Auto power off
Main measurements:AC/DC Voltage, AC/DC Current, Resistance,Capacitance,
Diode and Continuity Testing,Frequency and duty cycle.
* Frequency:1Hz to 10MHz
* Capacitance :10pF to 6000uF
* AC volts: 0.1mV to 750V
* DC volts:0.1mV to 1000V
* AC current:0.1uA to 10A
* DC current:0.1uA to 10A
* Resistance :0.1Ω to 60MΩ
* Duty cycle:1% to 99%
Specifications:
(1)Capacitance :10nF(±5.0+20),100nF/1uF/10uF/100uF(±2.0%+5),1000uF/10000uF(±5.0%+5)
(2)DC volts:600mV(±1.0%+10), 6V/60V/600V/1000V(±0.5%+3)
(3)AC volts: 600mV(±3.0%+3),6V/60V/600V/750V(±1.0%+3)
(4)DC current:600uA/6000uA(±1.5%+3),60mA/600mA(±1.5%+3),10A(±1.5%+3)
(5)AC current:600uA/6000uA(±1.5%+3),60mA/600mA(±1.5%+3),10A(±1.5%+3)
(6)Resistance :600Ω(±0.5%+3),6K/60K/600K/6M(±0.5%+2),60MΩ(±1.5%+3)
(7)Frequency:5/50/500/5k/50k/500k/5M/10M (±0.1+3)
(9)Duty cycle:1% to 99%(±1%)
(10) Measurement mode: Double-integral style A/D transform
(11)Over range indication: OL
(12) Working environment: 0~40°, relative humidity < 80%
(13) Supply power: 3V (1.5V AAA batteries * 2 Pcs)
(14) Dimension: 130*65*30mm
(15) Weight: 130g
(16) Accessories: User's manual,a pair of test leads, a bag, and two 1.5V batteries.
AN8002 PORTABLE AUTORANGING DIGITAL MULTIMETER
Features:
Auto ranges
True RMS
550V protection in Resistance.Capacitance and Frequency ranges
Large LCD display,MAX display 6000 counts
Sample rate: 3 times per second
backlight
Data hold
Polarity identification
Low voltage indication
10A high current and low current measurement
Auto power off
Main measurements:AC/DC Voltage, AC/DC Current, Resistance,Capacitance,
Diode and Continuity Testing,Frequency and duty cycle.
* Frequency:1Hz to 10MHz
* Temperature:-20° to 1000°(-4° to 1832°)
* Capacitance :10pF to 6000uF
* AC volts: 0.1mV to 750V
* DC volts:0.1mV to 1000V
* AC current:0.1uA to 10A
* DC current:0.1uA to 10A
* Resistance :0.1Ω to 60MΩ
* Duty cycle:1% to 99%
Specifications:
(1)Capacitance :10nF(±5.0+20),100nF/1uF/10uF/100uF(±2.0%+5),1000uF/10000uF(±5.0%+5)
(2)DC volts:600mV(±1.0%+10), 6V/60V/600V/1000V(±0.5%+3)
(3)AC volts: 600mV(±3.0%+3),6V/60V/600V/750V(±1.0%+3)
(4)DC current:600uA/6000uA(±1.5%+3),60mA/600mA(±1.5%+3),10A(±1.5%+3)
(5)AC current:600uA/6000uA(±1.5%+3),60mA/600mA(±1.5%+3),10A(±1.5%+3)
(6)Resistance :600Ω(±0.5%+3),6K/60K/600K/6M(±0.5%+2),60MΩ(±1.5%+3)
(7)Temperature:﹤400° ±(1.0%+5),≥400°±(1.5%+15)
﹤752° ±(1.0%+5),≥752°±(1.5%+15)
(8)Frequency:5/50/500/5k/50k/500k/5M/10M (±0.1+3)
(9)Duty cycle:1% to 99%(±1%)
(10) Measurement mode: Double-integral style A/D transform
(11)Over range indication: OL
(12) Working environment: 0~40°, relative humidity < 80%
(13) Supply power: 3V (1.5V AAA batteries * 2 Pcs)
(14) Dimension: 130*65*30mm
(15) Weight: 130g
(16) Accessories: User's manual,a pair of test leads, a TP01K thermocouple, a bag, and two 1.5V batteries.

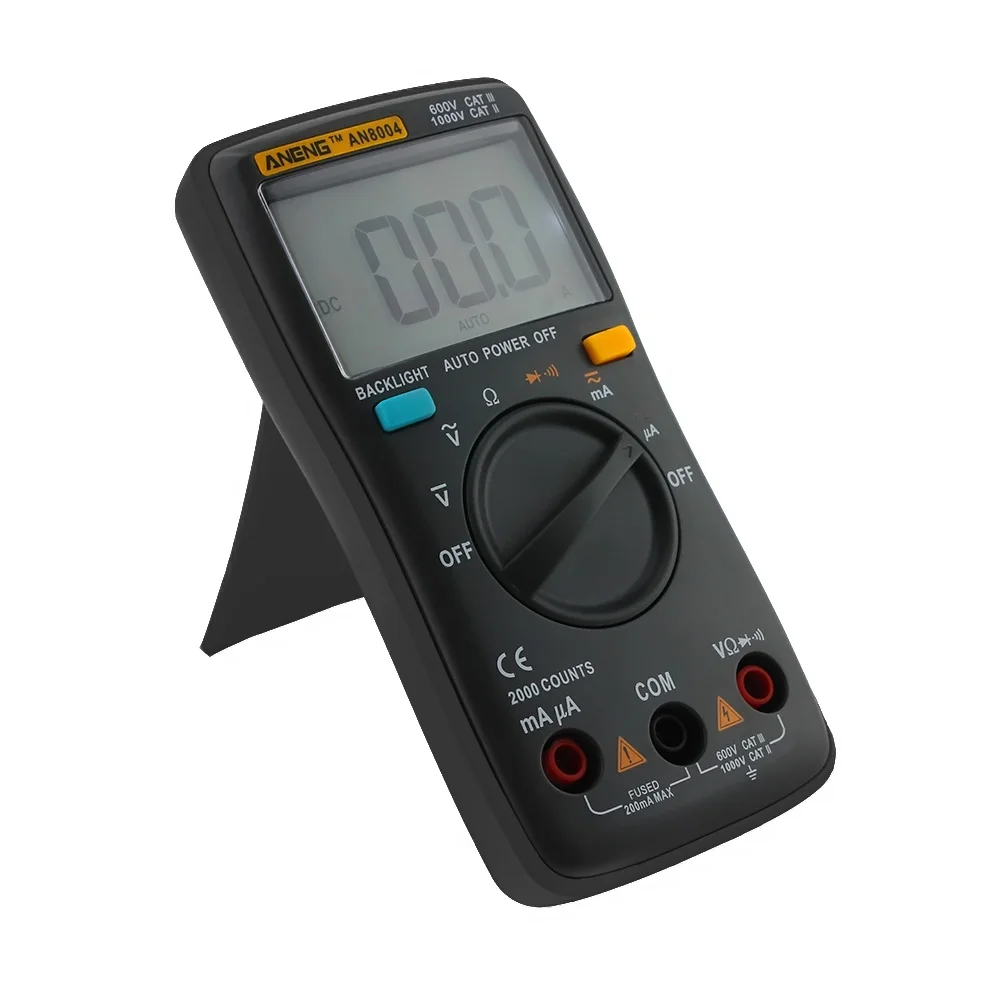

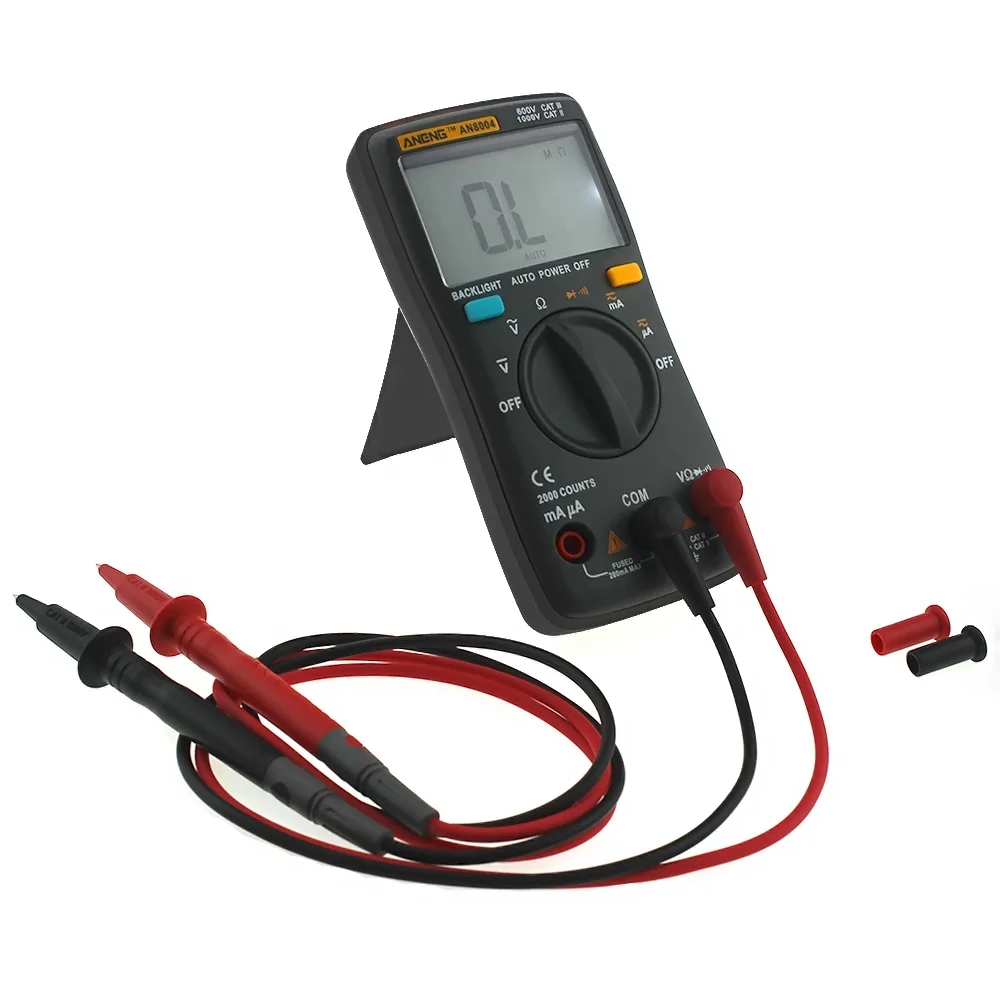

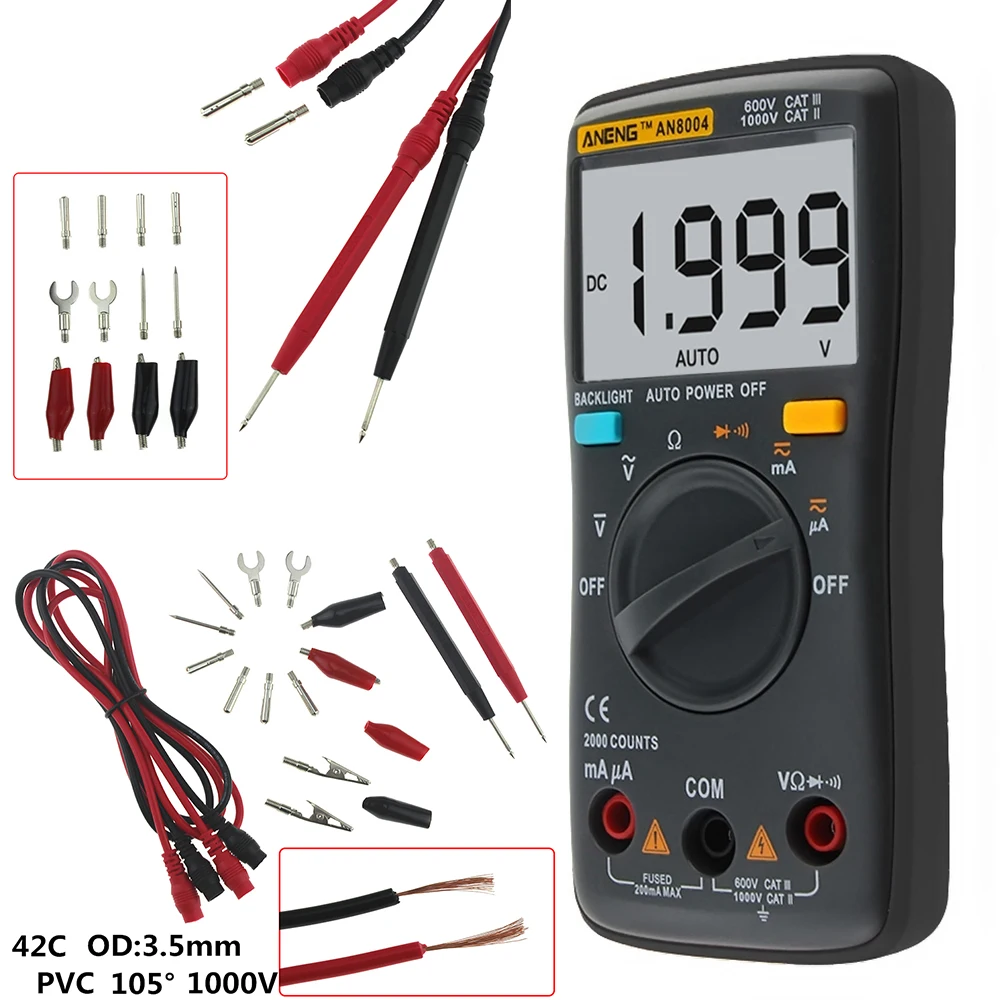

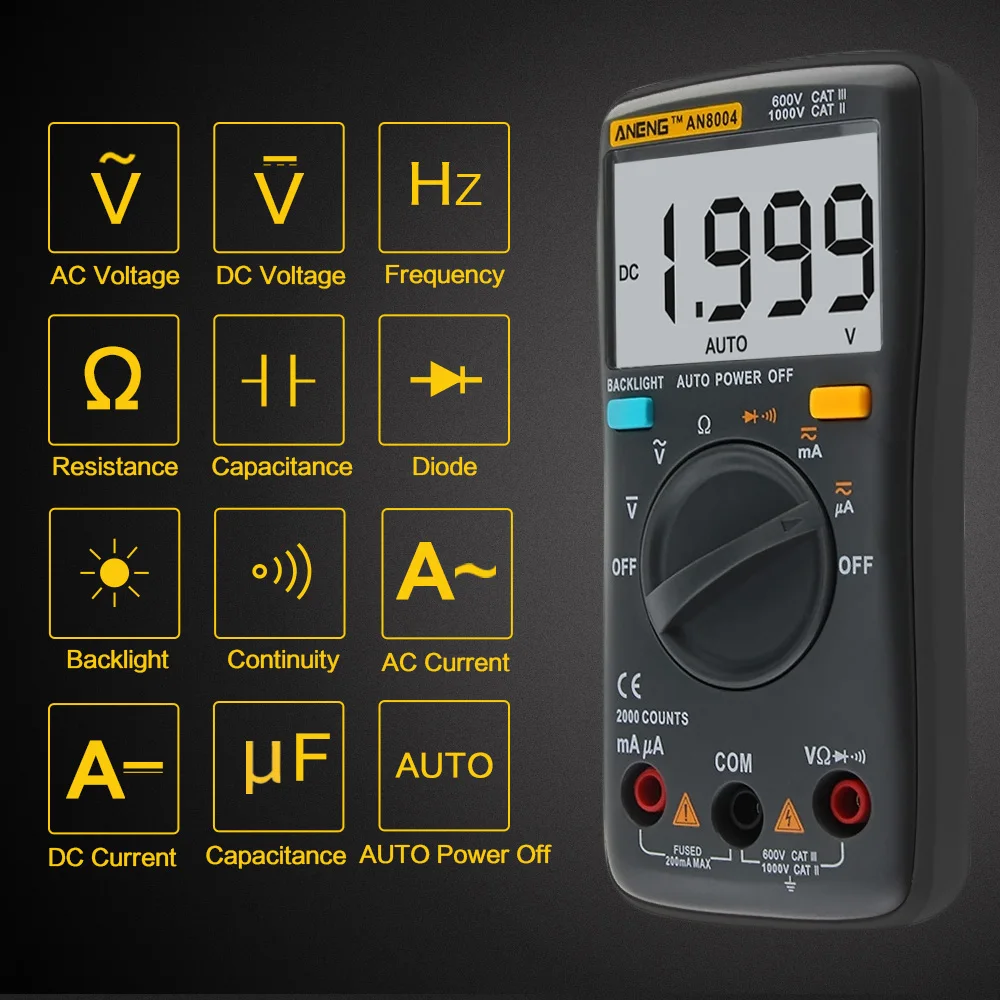

AN8004 PORTABLE AUTORANGING DIGITAL MULTIMETER
Features:
Auto ranges
550V protection in Resistance.Capacitance and Frequency ranges
Large LCD display,MAX display 2000 counts
Sample rate: 3 times per second
Backlight
Polarity identification
Low voltage indication
current measurement
Auto power off
Main measurements:AC/DC Voltage, AC/DC Current, Resistance, Diode and Continuity Testing
* AC volts: 0.1mV to 750V
* DC volts:0.1mV to 1000V
* AC current:0.1uA to 200mA
* DC current:0.1uA to 200mA
* Resistance :0.1Ω to 20MΩ
Specifications:
(1)DC volts:200mV/2V/20V(±0.8%+5),200V/800V(±1.0%+8)
(2)AC volts: 200mV(±1.5%+8),2V/20V/200V(±1.2%+5),600V(±1.5%+5)
(3)DC current:20mA(±1.5%+5),200mA(±1.2%+5)
(4)AC current:20mA(±2.0%+5),200mA(±1.5%+5)
(5)Resistance :200Ω(±2.5%+5),2K/20K/200K/2M(±1.0%+5),20MΩ(±2.5%+5)
(6)Over range indication: OL
(7) Working environment: 0~40°, relative humidity < 80%
(8) Supply power: 3V (1.5V AAA batteries * 2 Pcs)
(9) Dimension: 130*65*30mm
(10) Weight: 130g

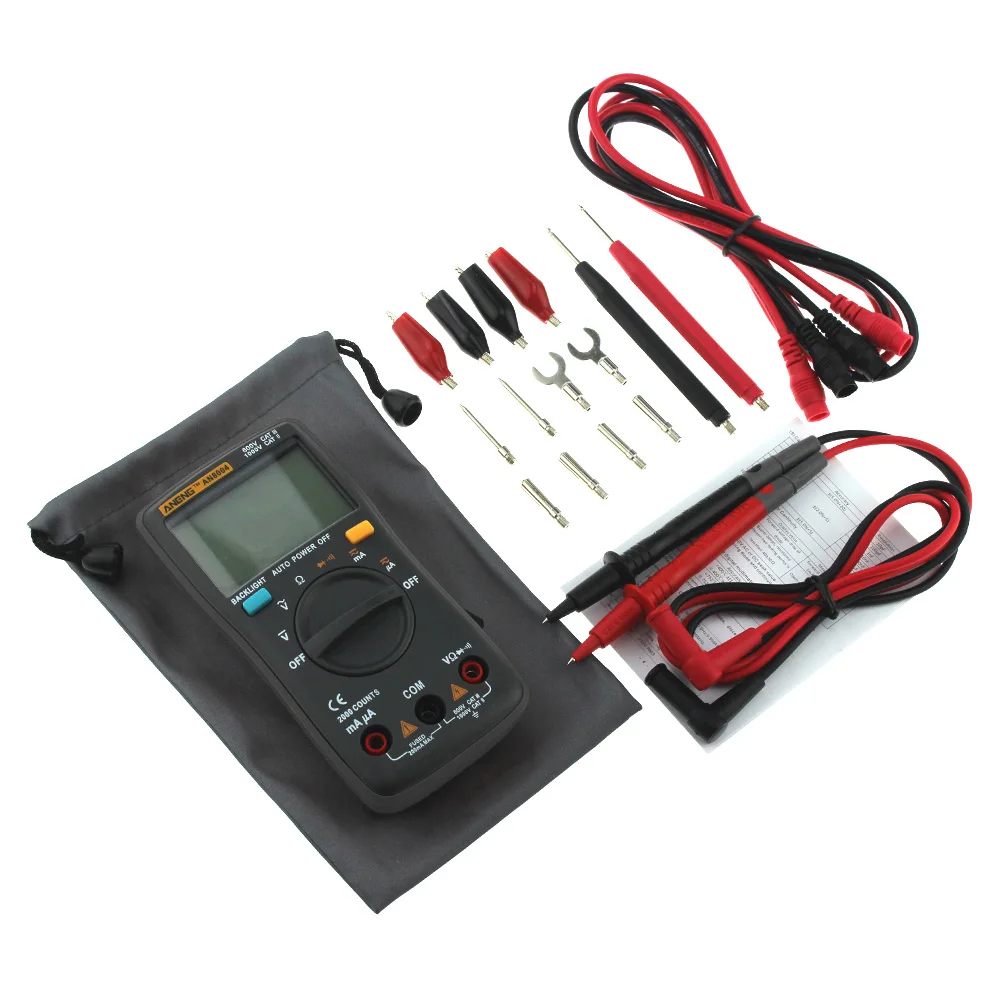

(11) Accessories: User's manual,a pair of test leadsand two 1.5V batteries.
Note:the batteries are no Included
Unit Type:
piece
Package Weight:
0.324kg (0.71lb.)
Package Size:
15cm x 8cm x 4cm (5.91in x 3.15in x 1.57in)
